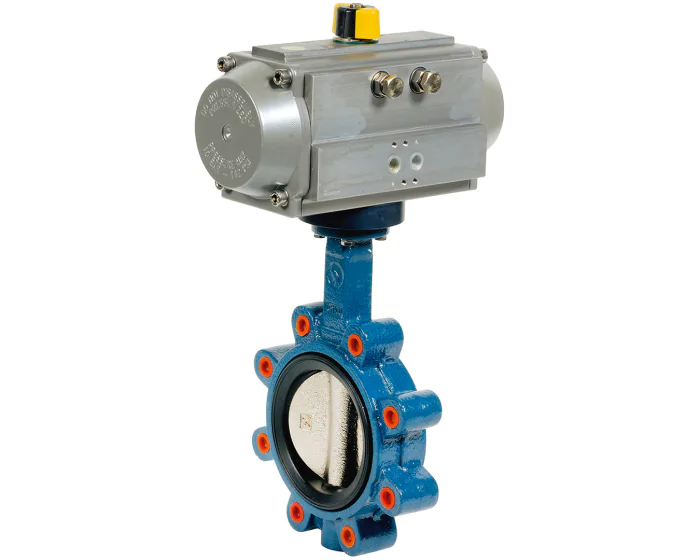

The 1135 lug butterfly valve has a ductile iron GL body, a nickel-plated disc and an EPDM seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar. Mounting between flanges PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Nickel-plated ductile iron |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Pneumatic actuator type | Spring return |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| CE | Risk category III |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 | 262503017006R | S1000608 |
€183.60
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 | 262503017107R | S1000609 |
€222.73
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' | 262504017006R | S1000610 |
€188.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' | 262504017107R | S1000611 |
€236.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 | 262505017007R | S1000612 |
€212.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 | 262505017108R | S1000613 |
€280.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' | 262506017007R | S1000614 |
€217.97
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' | 262506017108R | S1000615 |
€285.97
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' | 262507017008R | S1000616 |
€259.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' | 262507017110R | S1000617 |
€448.49
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' | 262508017008R | S1000618 |
€282.54
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' | 262508017110R | S1000619 |
€456.14
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' | 262509017009R | S1000620 |
€336.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' | 262509017111R | S1000621 |
€572.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' | 262510017010R | S1000622 |
€459.53
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' | 262510017112R | S1000623 |
€702.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN250 - 10'' | 262511017011R | S1000624 |
€849.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN250 - 10'' | 262511017113R | S1000625 |
€1,195.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN300 - 12'' | 262512017012R | S1000626 |
€946.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN300 - 12'' | 262512017115R | S1000627 |
€1,884.76
(excl. btw)
|
add to cart |
